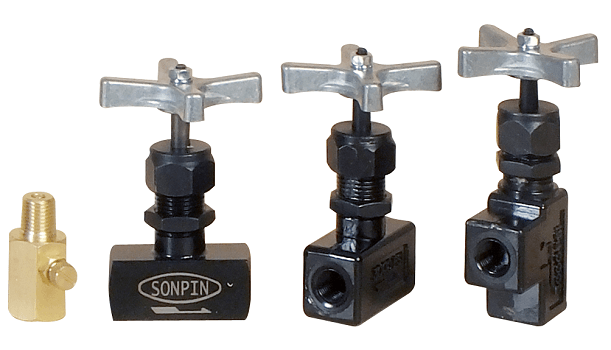

Needle Valve
Needle valve is used to accurately control flow rates of clean gasses or fluids.

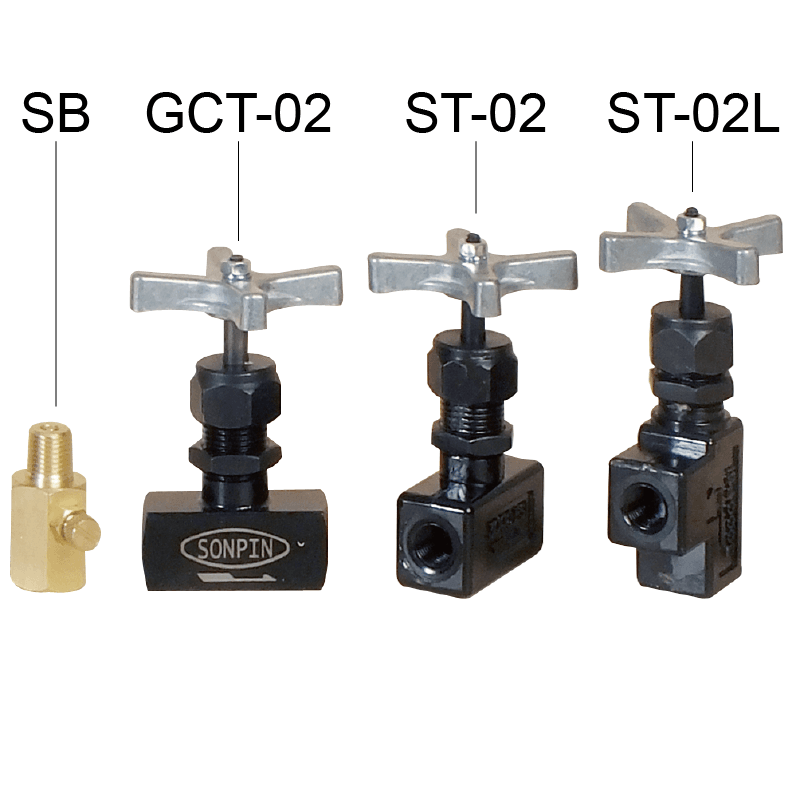

Model : ST/GCT/SB
Description
ST series: Maximum pressure 210kgs/cm2
GCT series: Maximum pressure 350kgs/cm2
SB series: Gauge Damper
Specifications

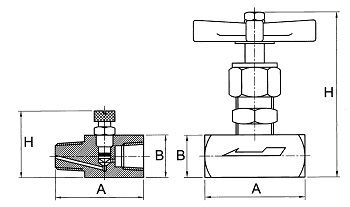

Model | Thread (PT) | A (mm) | B (mm) | H (mm) | Flow Rate (L/min) | Max. Pressure ( kgf/cm2 ) | Weight (kg) | |
ST-02 | 1/4" | 52.5 | 26 | 95.5 | 3 | 210 | 0.35 | |
ST-02L (90°) | 1/4" | 44.5 | 26 | 109 | 3 | 0.39 | ||
ST-03 | 3/8" | 52.5 | 26 | 95.5 | 21 | 0.34 | ||
ST-03L (90°) | 3/4" | 44.5 | 26 | 109 | 21 | 0.38 | ||
GCT-02 | 1/4" | 52.5 | 22 | 91 | 3 | 350 | 0.33 | |
SB-02 | 1/4" | 43 | 21 | 32 | 0.5 | 70 | 0.10 | |
SB-03 | 3/8" | 45 | 23 | 34 | 0.7 | 0.12 |
