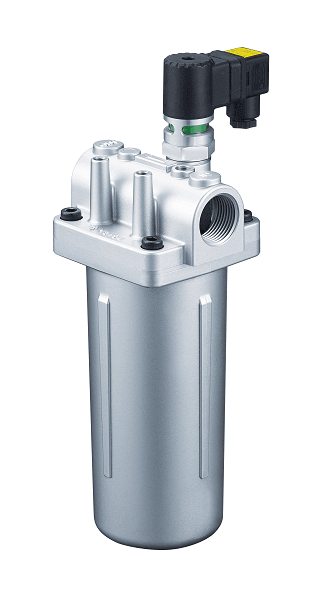

Low Pressure Inline Filter
High-pressure Through-Spindle Coolant is essential for deep-hole drilling and deep-pocketing operations, keeping the tools lubricated and free of chips.Especially for low Pressure Inline Filter is Coolant through Spindle filter.
Model : LRI
Production Description
● Material:
Aluminum alloy 380.1
● Application:
Machinery's recirculation system
CNC maching cooant filtration system
CTS (Through-Spindle coolant) system
● Optional Accessories:
Visual-electical / Visual type clogging indicators
Filter Material
Clogging Indicators
Specifications
Model | Thread (PT) | H0 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H4 (mm) | H5 (mm) | d2 (PT) | d3 (mm) | d4 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Ｄ1 (mm) | Flow Rate (L/min) | Max. Pressure ( kgf/cm2 ) | Optional Accessories | |
LRI-06 | 3/4" | 273 | 215 | 162 | 53 | 143 | 48 | 3/4" | M8x15L | M8x20L | 40 | 76 | 100 | 80 | 100 | 25 | Clogging Indicators (Visual-Electrical Type/ Visual type) | |
LRI-08 | 1" | 318 | 260 | 207 | 53 | 188 | 67.3 | 1" | 40 | 76 | 100 | 80 | 170 |
Model Nuber
| LRI | — | Inner diameter | — | Filtration | — | Optional Accessories | ||||
| Code | Innder diameter | Code | Filtration | Code | Description | |||||
| 06 | PT 3/4" | Glass fiber | Clogging Indicator | Height | ||||||
| 08 | PT 1" | 3C | 3um | N | Plug | NA | ||||
| 10C | 10um | IA | Visual Type | 40mm | ||||||
| 25C | 25um | EA | Visual-Electrical Type | 50mm | ||||||
| Filter Paper | ||||||||||
| 10U | 10um | |||||||||
| 20U | 20um | |||||||||
| 40U | 25um | |||||||||
| Stainless steel mesh | ||||||||||
| 100W | 100 mesh | |||||||||
| 120W | 120 mesh | |||||||||
| 150W | 150 mesh | |||||||||
| 200W | 200 mesh | |||||||||
| 300W | 300 mesh | |||||||||
| 400W | 400 mesh | |||||||||
| 600W | 600 mesh | |||||||||
| 800W | 800 mesh | |||||||||
Features
In-line hydraulic filters can be installed in all typical hydraulic systems, such as those found in industrial, mobile, and agricultural settings.
