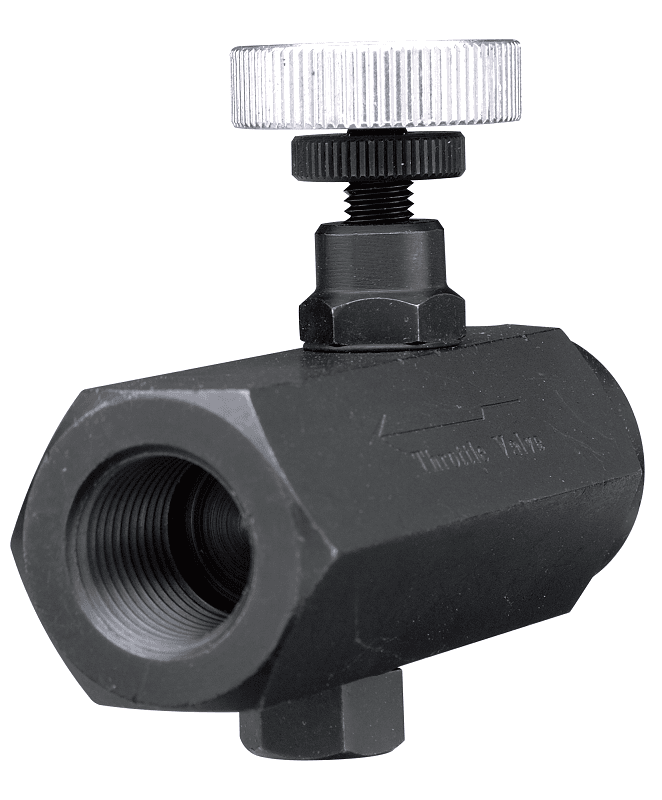

Throttle Check Valve
Model : KC
Description
Throttle Check Valve controls the flow in one direction, adjust the speed of the oil circuit, and stabilize the flow rate. Easy manual operation and control with the small force.
Specifications

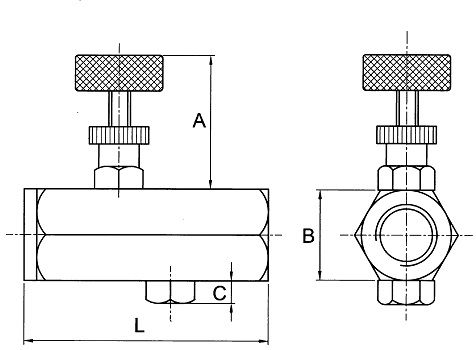

Model | Thread (PT) | A (mm) | B (mm) | C (mm) | L (mm) | Flow Rate (L/min) | Material | Max. Pressure ( kgf/cm2 ) | Weight (kg) | |
KC-02 | 1/4" | 40 | 23 | 7 | 62 | 12 | Steel | 210 | 0.24 | |
KC-03 | 3/8" | 38 | 26 | 7 | 70 | 20 | Steel | 210 | 0.30 | |
KC-04 | 1/2" | 43 | 32 | 10 | 81 | 30 | Steel | 210 | 0.50 | |
KC-06 | 3/4" | 47 | 41 | 12 | 92 | 48 | Steel | 210 | 0.92 |
