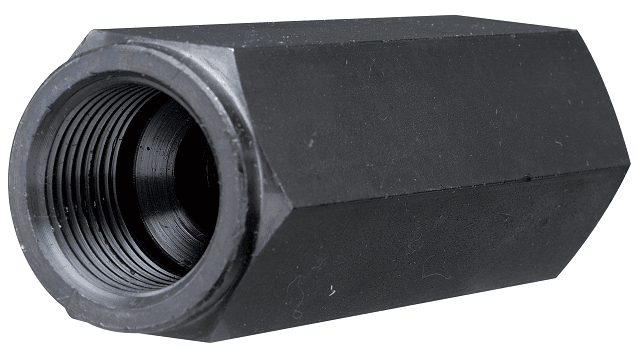

CV Hydraulic Inline Check Valve
Model : CV
Description
Check valve / Non-return valve / One-way valve. It allows fluid flow through it in only one direction.
*There's two kind of starting pressure available: 0.5 or 5 kg
Specifications

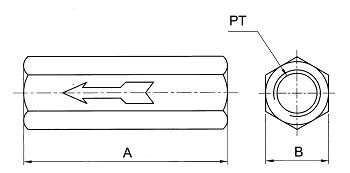

Model | Thread (PT) | A (mm) | B (mm) | Flow Rate (L/min) | Starting Pressure ( kgf/cm2 ) | Max. Pressure ( kgf/cm2 ) | Weight (kg) | |
CV-03 | 3/8" | 71 | 23 | 40 | 0.5 or 5 | 210 | 0.18 | |
CV-04 | 1/2" | 79 | 29 | 60 | 0.32 | |||
CV-06 | 3/4" | 93 | 35 | 100 | 0.49 | |||
CV-08 | 1" | 112 | 46 | 150 | 1.10 | |||
CV-10 | 1 1/4" | 134 | 55 | 200 | 1.80 | |||
CV-12 | 1 1/2" | 134 | 65 | 280 | 2.70 | |||
CV-16 | 2" | 158 | 80 | 400 | 3.62 |
