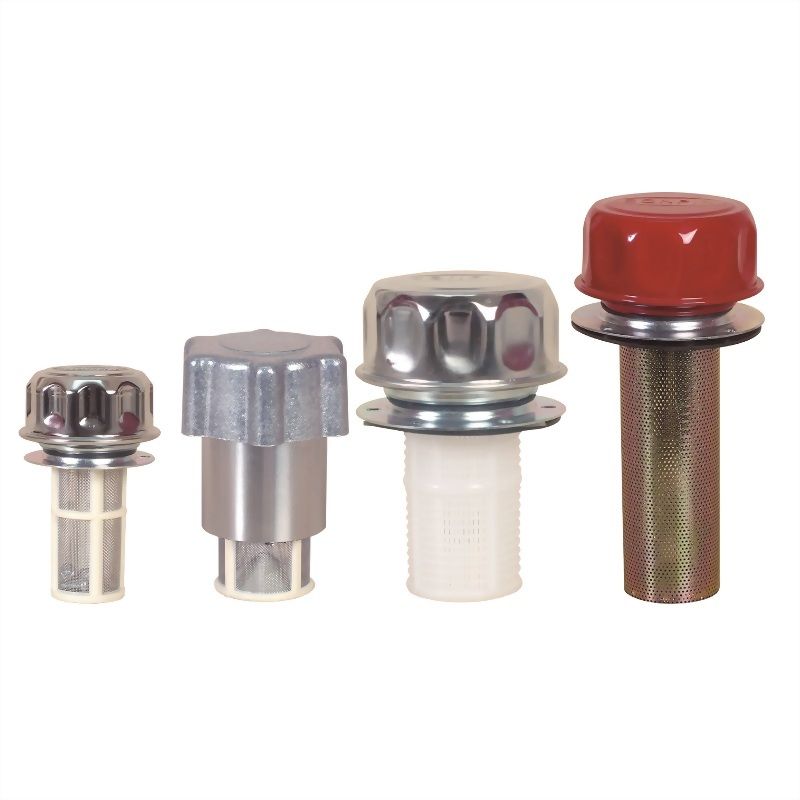

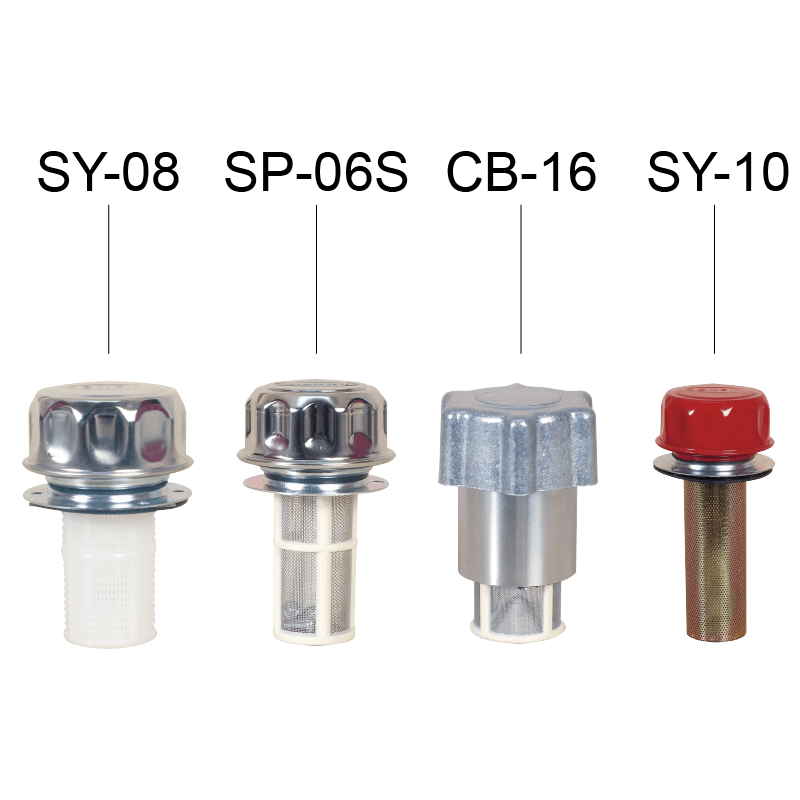

Fillter Breather / Fluid Refill Breather
Model : SP/SY/CB
Description
Installed on the oil tank. It filter impurities when filling oil. And also can be used as air breather.
*SP-06, SY-08: Plastic filter
*SP-06S, SY-08S: SUS 304 filter
Specifications
Specifications
Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Φd x Hole (mm) | Weight (kg) | |
SP-06 | 53 | 31 | 65 | 34 | 99 | 45.5 | 53 | Φ6 x 3 Holes | 0.09 | |
SP-06S | 53 | 31 | 65 | 34 | 99 | 45.5 | 53 | Φ6 x 3 Holes | 0.09 | |
SY-08 | 80 | 48 | 95 | 50 | 147 | 71 | 82 | Φ6 x 6 Holes | 0.26 | |
SY-08S | 80 | 48 | 95 | 50 | 147 | 71 | 82 | Φ6 x 6 Holes | 0.26 | |
SY-10 | 80 | 49 | 150 | 52 | 187 | 78 | 88 | Φ6 x 4 Holes | 0.30 | |
CB-16 (Vertical) | 85 | 46 | 120 | 38 | 158 | For tank side using / welding | 0.60 | |||
CB-16 (Sloping) | 85 | 46 | 120 | 38 | 158 | 0.61 | ||||
